Advanced MPPT technology
SunX Ultra Series
Sun Ultra Series

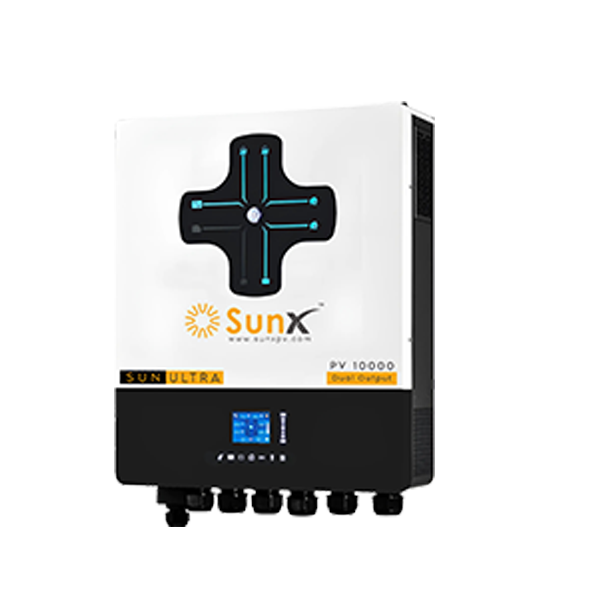

8kW | 10kW Dual Output Hybrid Inverter
- Dual output support with smart load management
- Two independent AC power sources
- Built-in current transformer sensor
- Wi-Fi module for mobile monitoring
- Parallel operation up to 6 units
Product Advantage
Power that works intelligently
The Sun Ultra series delivers versatile dual output hybrid inverter technology with smart load management and advanced safety features. Featuring 93% efficiency, pure sine wave output, and built-in Wi-Fi monitoring, it is designed for residential and commercial energy applications requiring reliable power management.
Pure sine wave output
10ms computer transfer time
USB, RS232, RS485 and Wi-Fi
Product Parameters
Technical specifications
Select a model to compare its main power, charging, battery, and operating details.
SUNX
Sun-Ultra 8kW
Dual Output Hybrid Inverter
Rated power8000 W
Surge power16000 VA
PV array power10000 W
MPPT range90–450 VDC
Battery voltage48 VDC
Maximum charge current150 A
Efficiency93%
Transfer time10ms PC / 20ms home
Dimensions145 × 348 × 553.6 mm
Net weight18.4 kg
